Midas DL16 Digital Stage Box
Midas DL16 Digital Stage Box
Brand:
Midas
Day Rate
£50.00 +VAT
Week Rate
£100.00 +VAT
Description

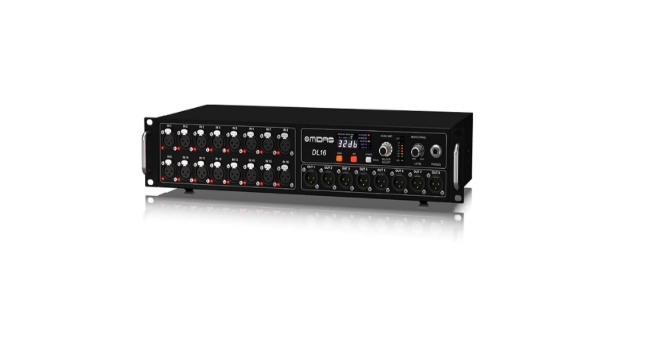

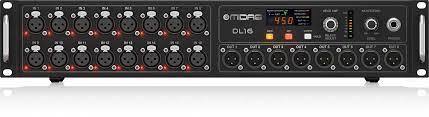

The Midas DL16 Digital Stage Box for hire London. The Midas DL16 Digital Stage Box is a professional-grade audio interface that delivers pristine sound quality for all events. Designed to integrate seamlessly with Midas and Behringer digital mixing consoles (such as the M32 and X32 series). The DL16 provides 16 high-quality Midas mic preamps and 8 balanced XLR outputs. Therefore this ensures clear and transparent signal transmission from stage to front-of-house.
This rack-mountable unit connects via AES50 Cat5e cable, allowing for easy digital audio transport up to 100 meters. Two AES50 ports provide flexibility for daisy-chaining or system expansion. While, the dual ADAT outputs offer additional routing options for recording or monitoring. Built with Midas’ renowned engineering precision, the DL16 ensures minimal latency, low noise floor, and exceptional durability, even in demanding touring environments.
In a hire context, the DL16 is an ideal choice for live sound engineers, event production companies, and touring acts who require dependable digital connectivity between stage inputs and mixing consoles. Compact and road-ready, it simplifies setup, reduces cable clutter, and maintains uncompromised sound quality throughout the signal chain.
Available as a digital stage box for hire in London, the Midas DL16 combines legendary audio performance with the convenience of modern digital networking — making it a trusted solution for any professional sound setup.
Product Video
Technical Specifications
</tr>T optical ports</tr>
<td>Power Supply100–240 V AC, 50/60 Hz
<td>Dual ¼” TRS headphone output with gain control
2 x AES50 ports (Cat5e) for 48 kHz operationExpansion</td>Supports up to 3 stage boxes (48 inputs/ 24 outputs)Additional Outputs</strong>2 x ADA
</thead>
<td>+48V switchable per channel
<tr><strong>Network Cable Length&lt;/strong>Up to 100m over Cat5e</td>
| Category</strong> | Specification</strong> | |
|---|---|---|
| <strong>Inputs</strong> | 16 x Midas mic/line inputs (XLR) | |
| Outputs</strong> | 8 x balanced XLR outputs | <strong>Digital Connectivity |
| <strong>Monitoring | ||
| Phantom Power | ||
| Signal Indicators | 4-segment LED meters per channel | |
| Latency</td> | <1 ms | |
| Frequency Response | 10 Hz – 22 kHz (±1 dB) | |
| <strong>Dimensions</strong> | 482 x 270 x 88 mm (19″ rack, 2U) | |
| Weight | 4.9 kg (10.8 lb) |
PDF Downloads
