Delivery, setup, operation and de-rig all available.

W-DMX Black Box F-1 G6

Brand:

N/A

Add to Shortlist

Get in touch to hire

Day Rate

£25.00 +VAT

Week Rate

£50.00 +VAT

Description

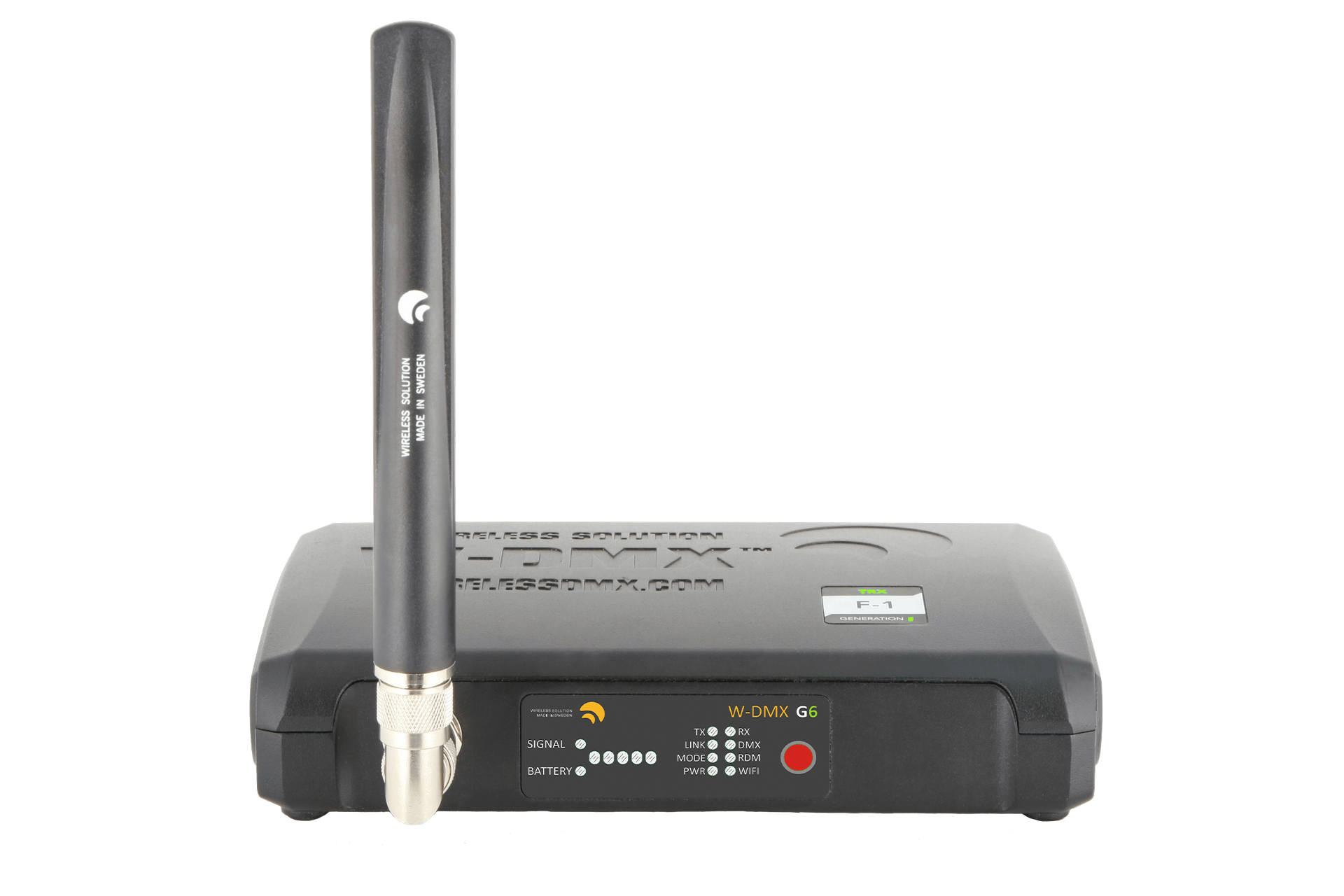

W‑DMX BlackBox F‑1 G6 Transceiver

Elevate your wireless control with the W‑DMX BlackBox F‑1 G6—a heavy-duty transceiver offering a remarkable 700 m (2,200 ft) range in both transmit and receive modes. Featuring Bluetooth for easy app setup, triple-band support, and robust build quality, it’s the go-to choice for demanding live, rental, and installation environments.

Top Features at a Glance

Supports W‑DMX, Art‑Net, sACN, DMX, and RDM protocols
Up to 700 m (2,200 ft) wireless range with Adaptive Frequency Hopping
Bluetooth configuration via W‑DMX Configurator app
Flexible power: 88–264 V AC via powerCON TRUE1
IP42-rated die-cast aluminium housing—built for the road

Technical Specifications

Why Professionals Trust the G6

Whether you’re staging a festival, setting up a broadcast, or overseeing a corporate installation, the G6 offers unmatched reliability. Streamline your setup with Halo’s lighting hire, and get expert support anytime—contact us today.

Learn more from the official Wireless Solution product page.

Product Video

Technical Specifications

Technical Specifications – W‑DMX BlackBox F‑1 G6 Transceiver

Specification	Details
Modes	Transceiver (TX/RX)
Protocols	W‑DMX, Art‑Net, sACN, DMX, RDM
Wireless Range	Up to 700 m / 2,200 ft
DMX Channels	512
Latency	< 5 ms
Frequency	2.4 GHz (Adaptive Frequency Hopping)
Configuration	Bluetooth via W‑DMX Configurator app
Power Input	88–264 V AC (powerCON TRUE1)
DMX Connectors	3‑pin & 5‑pin XLR
Build	Die-cast aluminium, IP42
Dimensions	260 × 150 × 45 mm
Weight	1 kg
Operating Temp.	−20 °C to 55 °C
Included	Transceiver, antenna, rack kit
