Delivery, setup, operation and de-rig all available.

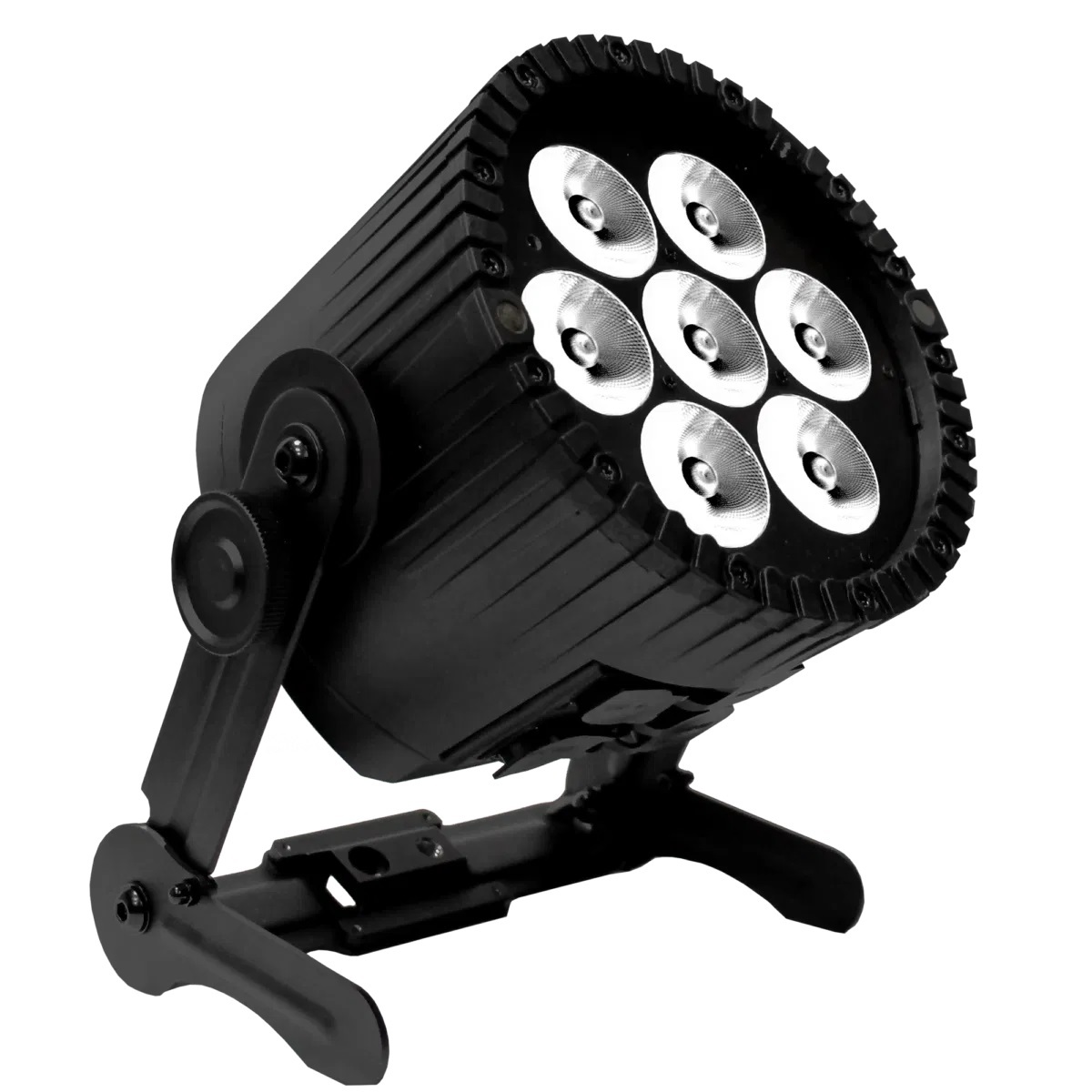

Astera AX9 PowerPAR

Brand:

Astera

Add to Shortlist

Get in touch to hire

Day Rate

£40 +VAT

Week Rate

£80 +VAT

Description

AX9 Lighting Fixture

The AX9 builds on the AX5’s innovative 3-in-1 design. It functions as a wireless light, an elegant uplight, and a wired PAR light for larger installations. This versatility makes it a highly cost-efficient choice, minimizing your investment.

Compact and lightweight design that delivers exceptional brightness and offers industry-leading colours and white tones, powered by the Titan LED Engine.

Product Video

Technical Specifications

Order Code	AX9
LED Engine	Titan LED Engine
Colors	RGBMintAmber
Total LED Power	105 W
LED Power Draw	70 W
Luminous Flux 2700K	2 844 Lumens
Luminous Flux 3200K	3 214 Lumens
Luminous Flux 5500K	3 047 Lumens
Light Output 2700 K @ 1m	41 755 Lux
Light Output 3200 K @ 1m	47 078 Lux
Light Output 5500 K @ 1m	44 355 Lux
CRI (Ra)/ TLCI 3200- 6500 K	≥96
Beam Angle	13°
Field Angle	25°
Strobe	0 – 25 Hertz
Pixels	1
Battery Runtime	up to 20 hours
Battery Lifetime	70 % after 300 cycles
Charging Time (nominal)	5 hours
AC Input	100-240 VAC, 50/60 Hz, 2.3 A/115 VAC, 1.1 A/230 VAC, 110 W
AC Connector	PowerCON TRUE1 IN/OUT
Wired DMX	Yes ( via 5-pin XLR)
CRMX Receiver	Built-in
BluetoothBridge BTB	Built-in
Wireless Protocols	CRMX, UHF, Bluetooth, WiFi
Wireless Range	CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control	Yes
Housing Material	Aluminium
IP Rating	IP65
Ambient Operating Temperature	0 – 40 °C / 32 – 104 °F
Weight	5.66 kg / 12.5 lb
Dimensions L x W x D	175 mm x 222 mm x 256 mm / 6.9″ x 8.7″ x 10.1″
Mounting Options	AirlineTrack, 4x M6 thread, AX9 Bracket (with 3/8“-16 UNC thread, 1/2“ hole)
