Delivery, setup, operation and de-rig all available.

Astera PlutoFresnel (AF80)



Get in touch to hire

Day Rate

£55.00 +VAT

Week Rate

£110.00 +VAT

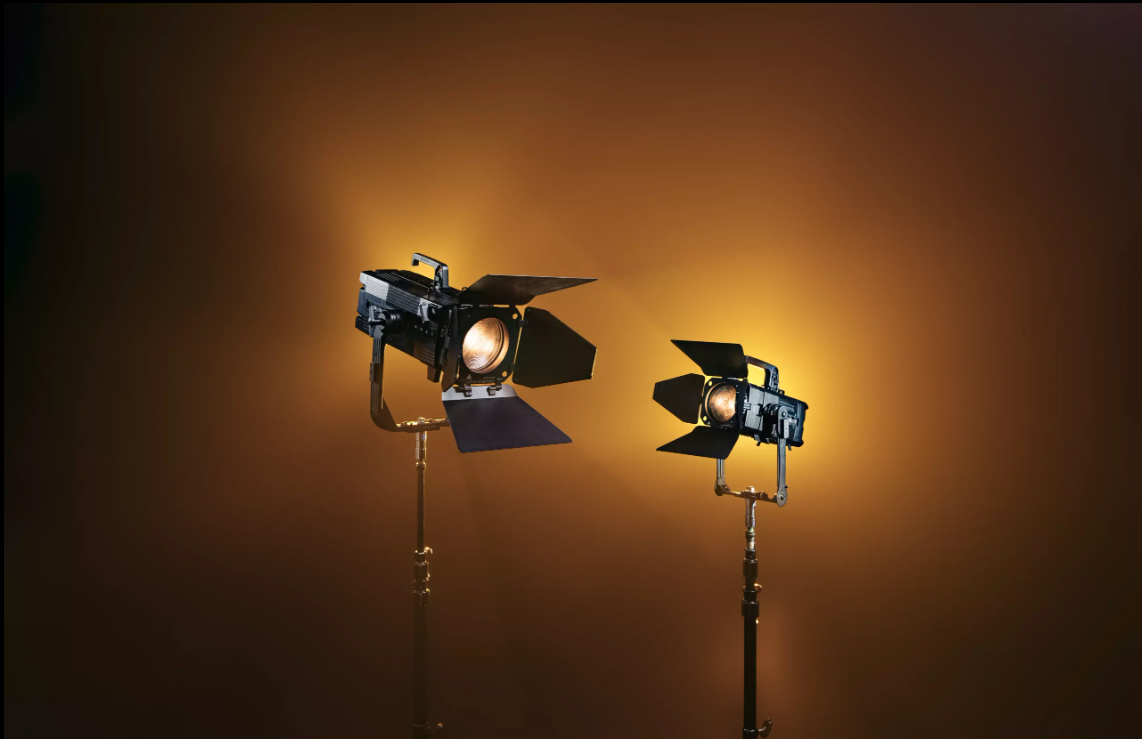

The Astera PlutoFresnel is an exceptional solution for film, studio, and event lighting. PlutoFresnel boasts an impressive output comparable to a traditional 300W Tungsten Fresnel. These lights offer impressive performance while consuming only 80W. They comes with a beam angle of 15° to 60° without colour fringing, wireless and wired DMX control. Easy to mount and adjust with removable handles and YokeBases, they enhance creativity and productivity on any set.

Order CodeAF80
LED EngineTitan LED Engine
Total LED Power105 W
LED Power Draw80 W
Luminous Flux 3200 K2 232 Lumens
Luminous Flux 4000 K2 642 Lumens
Luminous Flux 5500 K2 847 Lumens
Light Output 5500 K 15° @ 1m38 167 Lux
Light Output 5500 K 35° @ 1m10 028 Lux
Light Output 5500 K 60° @ 1m2 872 Lux
CRI (Ra)/ TLCI 3200- 6500 K≥96
Beam Angle15° – 60°
Field AngleTBD
Strobe0 – 25 Hertz
Battery Runtimeup to 20 hours
Battery Runtime max. Brightness3h
Battery Lifetime80 % after 400 cycles
DC Input24 VDC, 80W
DC Connector5.5 mm x 2.1 mm
Power Consumption (max.)80W
Wired DMXYes (via FP3-DTL / PWB-2-86)
CRMX ReceiverBuilt-in
BluetoothBridge BTBBuilt-in
Wireless ProtocolsCRMX, UHF, Bluetooth, WiFi
Wireless RangeCRMX/UHF Up to 100 m / 330 yds Bluetooth Up to 3 m / 3.3 yds
RDM SupportWireless
Infrared ControlYes
Housing MaterialPolymer & Metal
IP Rating unwiredIP55 (only with PB15-PLG)
IP Rating wiredIP55 (only with PWB-CAB-0.2/-1.5/-5/-10/-15)
Ambient Operating Temperature0 – 40 °C / 32 – 104 °F
Weight (with AF80-FL, AF80-BD)4.637 kg / 10.22 lbs
Weight (with AF80-FL, AF80-BD, AF80-YK, 2x AF80-YKB, AF80-THD)6.493 kg / 14.31 lbs
Dimensions L x W x H281.9 mm x 153.5 mm x 161.8 mm / 11.1″ x 6.0″ x 6.4″
Dimensions L x W x H (with AF80-YK, 2x AF80-YKB)281.9 mm x 244.7 mm x 323 mm / 11.1″ x 9.6″ x 12.7″
