d&b Audiotechnik E5 White NL4

Brand:

D&B Audio

Get in touch to hire

Day Rate

£30.00 +VAT

Week Rate

£60.00 +VAT

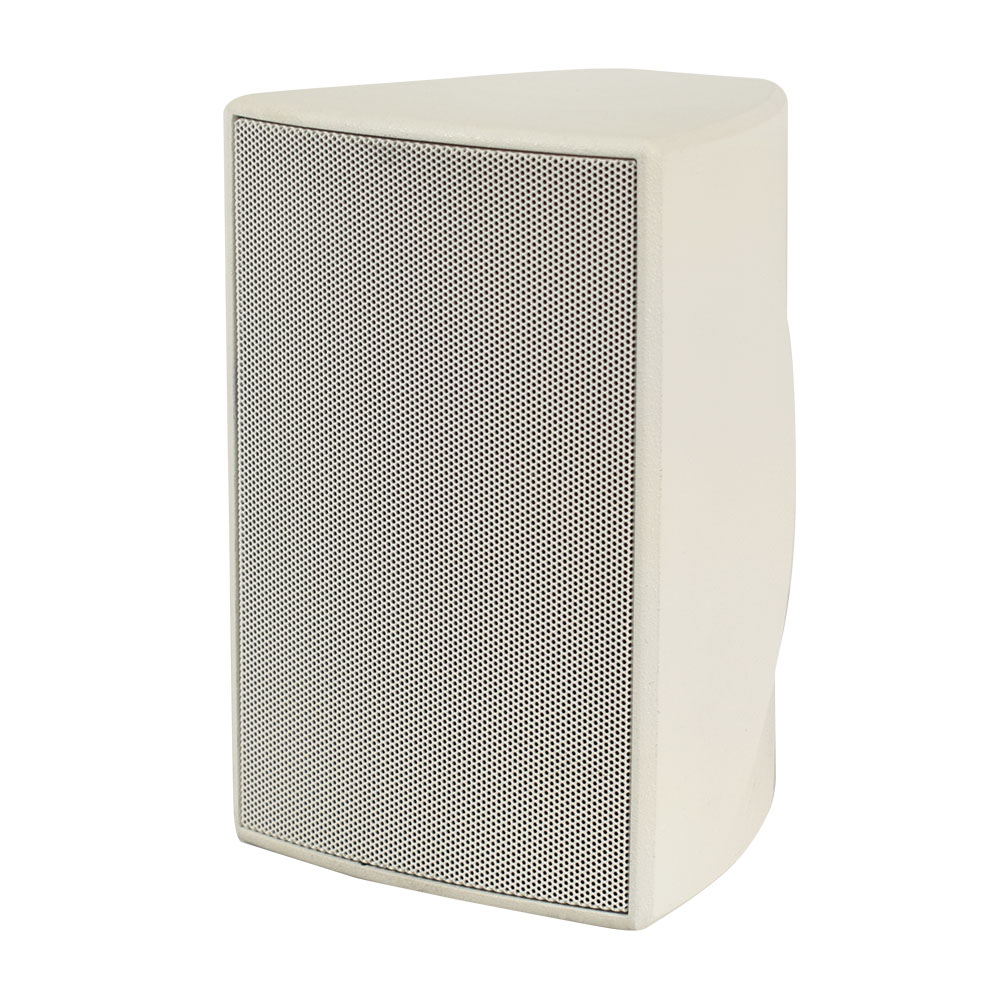

The d&b Audiotechnik E5 White NL4 is a lightweight 2-way passive loudspeaker. It uses a ferrite LF driver and a coaxially mounted wide dispersion dome tweeter. It offers a wide symmetrical dispersion pattern in the horizontal and vertical plane. The cabinet can be mounted in either attitude. The E5 is perfect for mobile near field applications for speech and music reinforcement. Ideal for theatres, conferences, industrial presentations, broadcast studios and as surround sound, delay and fill system. The speaker can be used stand-alone or supplemented by different subwoofers from the E-Series. The highly compact bass-reflex enclosure comes in impact resistant black paint finish.

Amplifiers

The following amplifiers can be used to drive the E5:

  • Mobile: D20, D40, D80
  • Installation: 5D, 10D, 30D, 40D

Features

  • Components 5″/1″
  • Dispersion 100° conical
  • SPLmax 117 dB
  • Weight 2.7 kg / 6.0 lb

System data

  • Frequency response (-5 dB standard): 85 Hz – 20 kHz
  • Frequency response (-5 dB CUT mode): 130 Hz – 20 kHz
  • Max. sound pressure [1]:
    with 10D: 116 dB
    with D20/5D/30D: 117 dB
    with D40/D80/40D: 117 dB
  • Cabinets per amplifier channel: 4

Loudspeaker data

  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 16 Ω
  • Power handling capacity (RMS/peak 10 ms): 60/400 W
  • Nominal dispersion angle (h x v): 100° conical
  • Components:
    5″ driver with ferrite magnet
    1″ dome tweeter coaxially mounted
    passive crossover network
  • Connections:
    2 x NL4
    1 x two pole push terminal

Dimensions / weight

  • Dimensions (H x W x D): 230 x 154 x 155 mm / 9 x 6 x 6.1″
  • Weight: 2.7 kg / 6.0 lb
