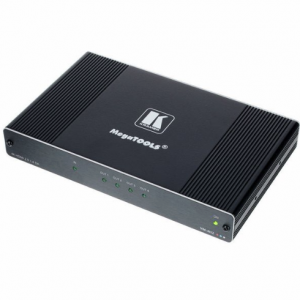

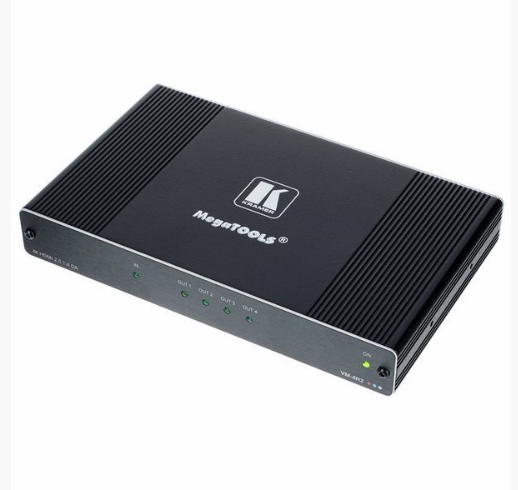

Kramer 1In/4Out HDMI (VM-4H2)
Kramer 1In/4Out HDMI (VM-4H2)
Brand:
Kramer
Day Rate
££20.00 +VAT
Week Rate
££40.00 +VAT
Description
Need one HDMI source feeding four displays without a drop in quality? The Kramer VM-4H2 is a 1:4 HDMI distribution amplifier that takes a single 4K HDMI input and mirrors it across four identical outputs — ideal for multi-screen presentations, digital signage, exhibition stands, or venues where the same feed needs to reach several displays at once. It equalizes and reclocks the incoming signal before distributing it, rebuilding signal integrity for loss-less transmission over longer cable runs. Well suited to simple, reliable distribution of high-resolution 4K video signals within corporate, educational, hospitality and government event settings, it’s a compact, plug-and-play solution that just works — no configuration headaches on site.
Product Video
Technical Specifications
Tech Spec
| Spec | Detail |
|---|---|
| Function | 1:4 HDMI distribution amplifier (splitter) |
| Inputs | 1 x HDMI connector |
| Outputs | 4 x HDMI connectors |
| Max Resolution | Up to 4K @ 60Hz (4:4:4) Ultra-HD |
| Max Data Rate | 17.82Gbps (5.94Gbps per graphic channel) |
| Standards Compliance | HDMI 2.0, HDR10, HDCP 2.2 |
| Audio Support | 7.1 PCM, Dolby TrueHD, DTS-HD |
| Additional Features | 3D pass-through, Deep Color, x.v.Color, Lip Sync, CEC; Kramer Equalization & re-Klocking technology; Force RGB; selectable HDCP authorisation |
| Control | RS-232 for field firmware upgrade; status LEDs for input/output signal and power |
| Dimensions | 7.38″ x 4.53″ x 1.0″ |
| Weight | 0.9 lbs |
| Included | Power supply |
PDF Downloads
