Loading capacity 5 kN/mÂ²
Weight 48kg, 4×8 unit
Aluminium ladder frame side profiles
Rounded edge profiles
19mm black coated birch plywood
4 integrated leg pockets

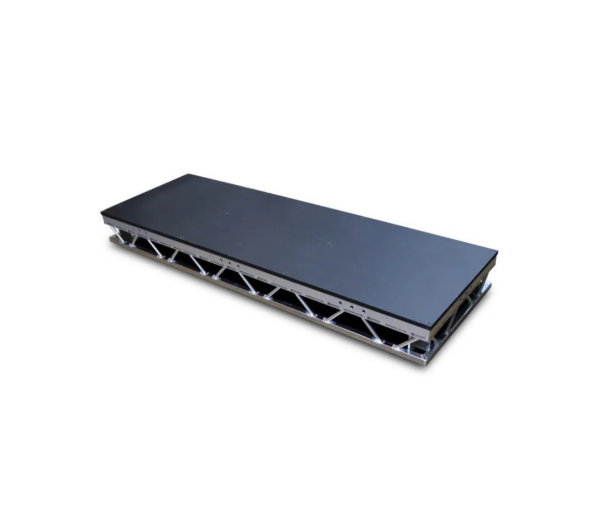

The LiteDeck stage decking system is manufactured from high tensile aluminium alloy grade 6082T6. The material has a 0.2% proof stress of 225MN/m2. The sections are extruded and comply with BSEN755-2.
The decking frame is constructed through the TIG welding process and is carried out in accordance to specifications laid out in BS3019: part 1: Specification for TIG welding of aluminium by welders certified to BS: EN:287-2: Approval testing of welders for fusion welding – part 2: aluminium and its alloys.
