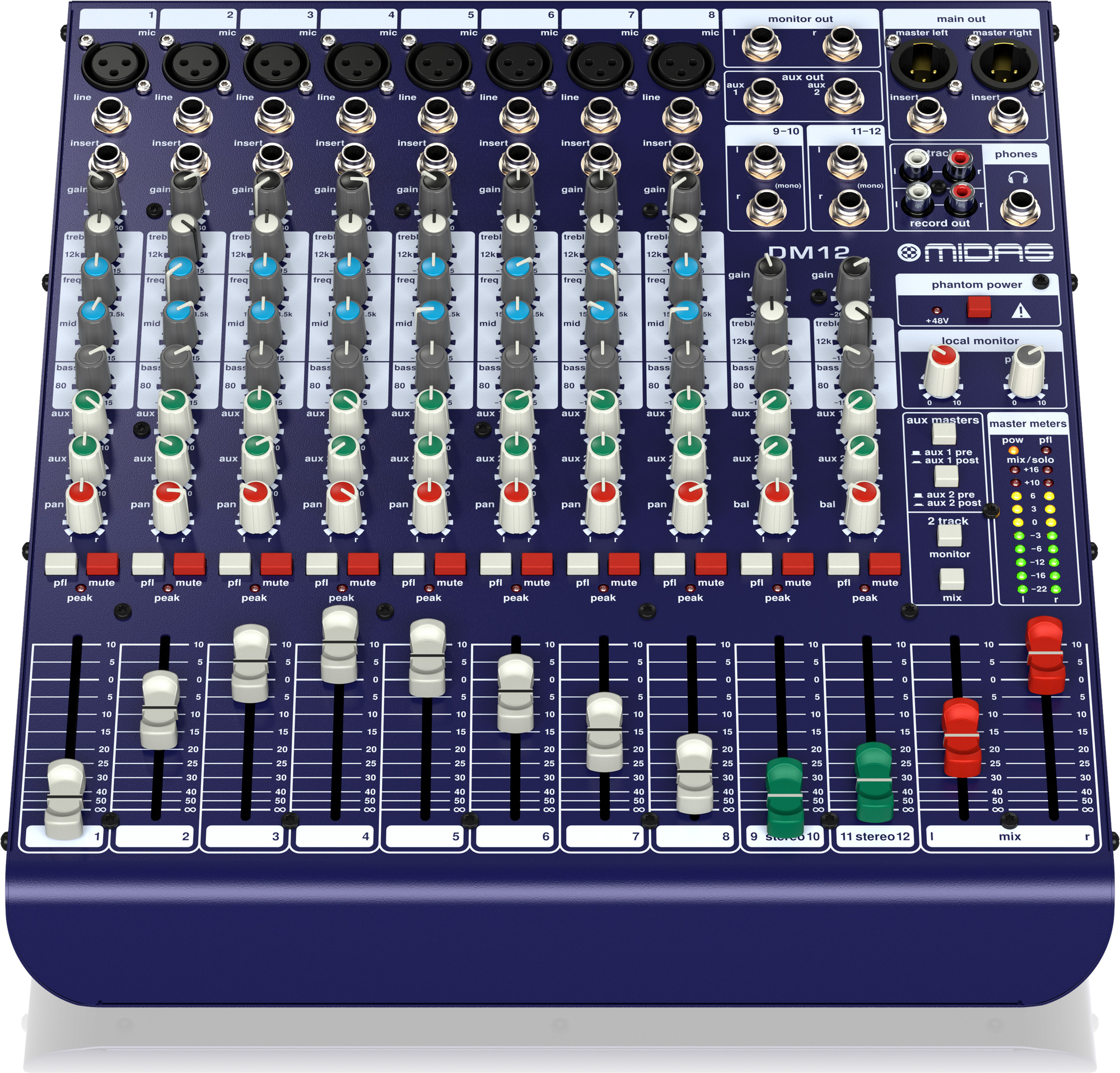

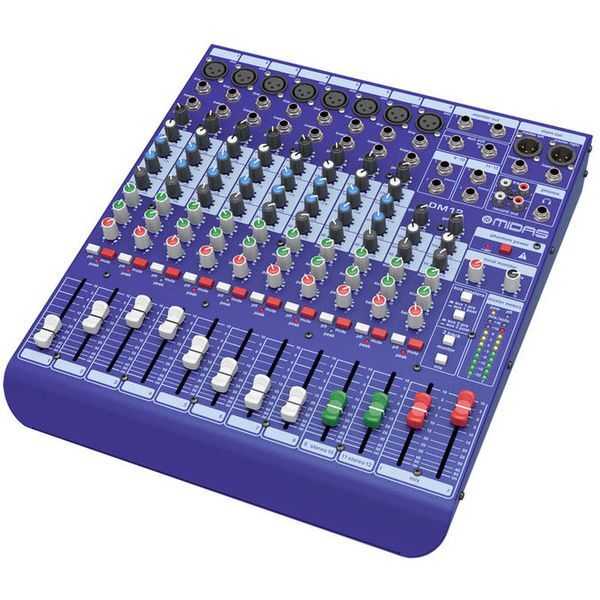

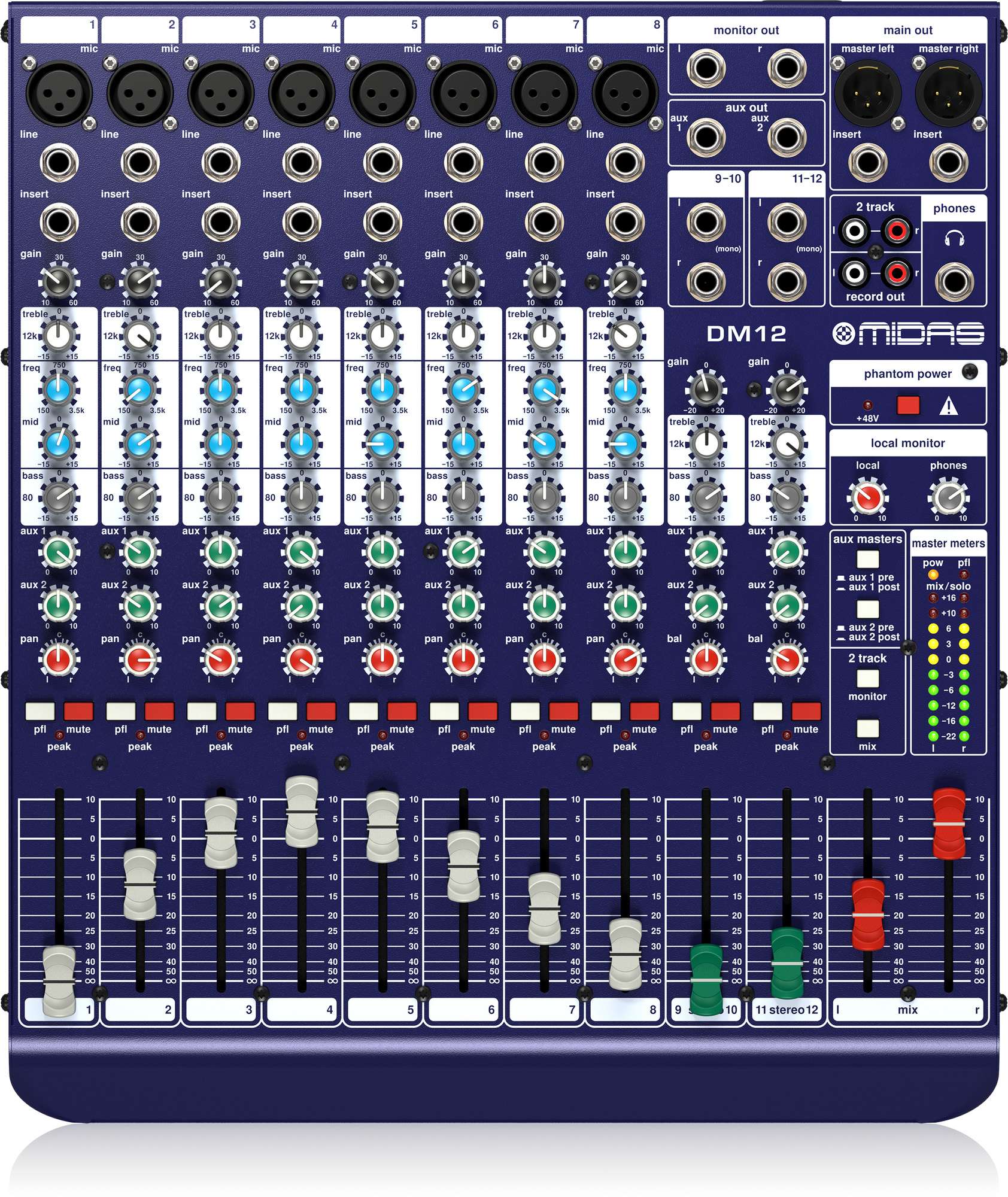

MIDAS Analog Mixer DM12

Brand:

midas

Add to Shortlist

Get in touch to hire

Day Rate

£35 +VAT

Week Rate

£70 +VAT

Description

The Midas DM12 Studio Mixer offers compact form and outstanding sonic performance for studio or stage. Featuring 8 award-winning preamps with true +48 V Phantom Power, it ensures transparency, low noise, and high headroom. With 12 TRS Line Inputs (8 mono, 2 stereo), mono channel inserts, 3-band EQ with mid-frequency sweep, 2 pre/post-fader aux sends, 2 monitor outs, and 2-track RCA I/O, the DM12 provides exceptional versatility and value. Perfect for professional audio setups, the Midas DM12 Studio Mixer combines performance, flexibility, and affordability.

Product Video

Technical Specifications

Mono Inputs

Mic inputs (MIDAS mic preamp)	8
Type	XLR, balanced
Mic EIN @ 60 dB gain, 50 O source at insert send	-131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB gain, 150 O source at insert send	-128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10dB Gain, at insert send	-97 dBu, unweighted, 20 Hz to 20 kHz
Frequency response (-1 dB) at main output	20 Hz to 20 kHz (-1 dB)
Frequency response (-3 dB) at main output	70 kHz (-3 dB)
Mic Gain range	+10 dB to +60 dB
Max. input level	+11 dBu @ +10 dB gain
CMRR @ +60dB gain	Typically -90 dB
Impedance	2 kO, balanced
Distortion (THD+N) at 0 dBu	0.005% @ 1kHz
Phantom power	Switchable, +48 V

Line Input

Type	¼” TRS, balanced
Impedance	20 kO balanced / unbalanced
Line Gain range	-10 dB to +40 dB
Max. input level	+30 dBu

Stereo Inputs

Type	4 x ¼” TRS connector, balanced
Impedance	20 kO balanced / unbalanced
Gain range	-20 dB to +20 dB
Max. input level	+21 dBu

Equaliser

Low	±15 dB @ 80 Hz, shelving
Mid (mono inputs only)	±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
High	±15 dB @ 12 kHz, shelving

Channel Inserts

Type	¼” TRS connector, unbalanced
Max. input / output level	+21 dBu

Aux Sends

Type	2 x ¼” TRS connector, balanced
Impedance	240 O balanced, 120 O unbalanced
Max. output level	+21 dBu

Monitor Out

Type	2 x ¼” TRS connector, balanced
Impedance	240 O balanced, 120 O unbalanced
Max. output level	+21 dBu

Main Out

Type	2 x XLR, electronically balanced
Impedance	100 O balanced, 50 O unbalanced
Max. output level	+21 dBu

Main Out Inserts

Type	2 x ¼” TRS connector, unbalanced
Max. input / output level	+21 dBu

Phones Output

Type	¼” TRS connector, unbalanced
Impedance	25 O
Max. output level	+21 dBu

2-Track Input

Type	2 x RCA, unbalanced
Impedance	20 kO
Max. input level	+21 dBu

Record Out

Type	2 x RCA, unbalanced
Impedance	1 kO
Max. output level	+21 dBu

Main Mix System Noise

Main mix @ -?, channel fader @ -8	-104 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ -8	-91 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ 0 dB	-84 dBu, unweighted, 20 Hz to 20 kHz
