- Sections: 5
- Telescopic elements: 4
- Material: Steel
- Load max.: 290 kg
- Load min.: 25 kg
- Height max.: 6.6 m
- Height min.: 1.8 m
- Tube attachment diameter: 35 mm
- Stand area: 1.8 x 1.8 m
- Transport Height: 1.8 m
- Transport area: 0.5 x 0.5 m
- Transport weight: 184 kg
- Transport wheels: 4 + 3

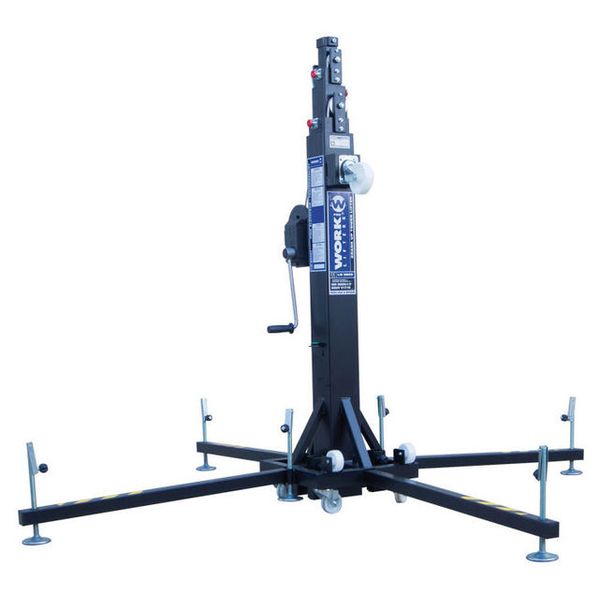

Work LW 290 D Truss Lift 290kg 6,6m
The Work LW 290 D Truss Lift is a construction type Telescope lift with a maximum Load of 290 kg and maximum height of 6.6 meters.
Certified according to DGUV V17 / 18 (BGV C1) and already prepared for the new DIN 56950-3.
WIRE DRIVE for a perfect and material-saving cable winding, as required by DIN 56950-3.
Surface coating: Black lacquer finish.
