8000L Panasonic PT-MZ880BEJ Projector£350.00
Delivery, setup, operation and de-rig all available.
8000L Panasonic PT-MZ880BEJ Projector
Brand:
Pansonic
Day Rate
££350.00 +VAT
Week Rate
££700.00 +VAT
Description

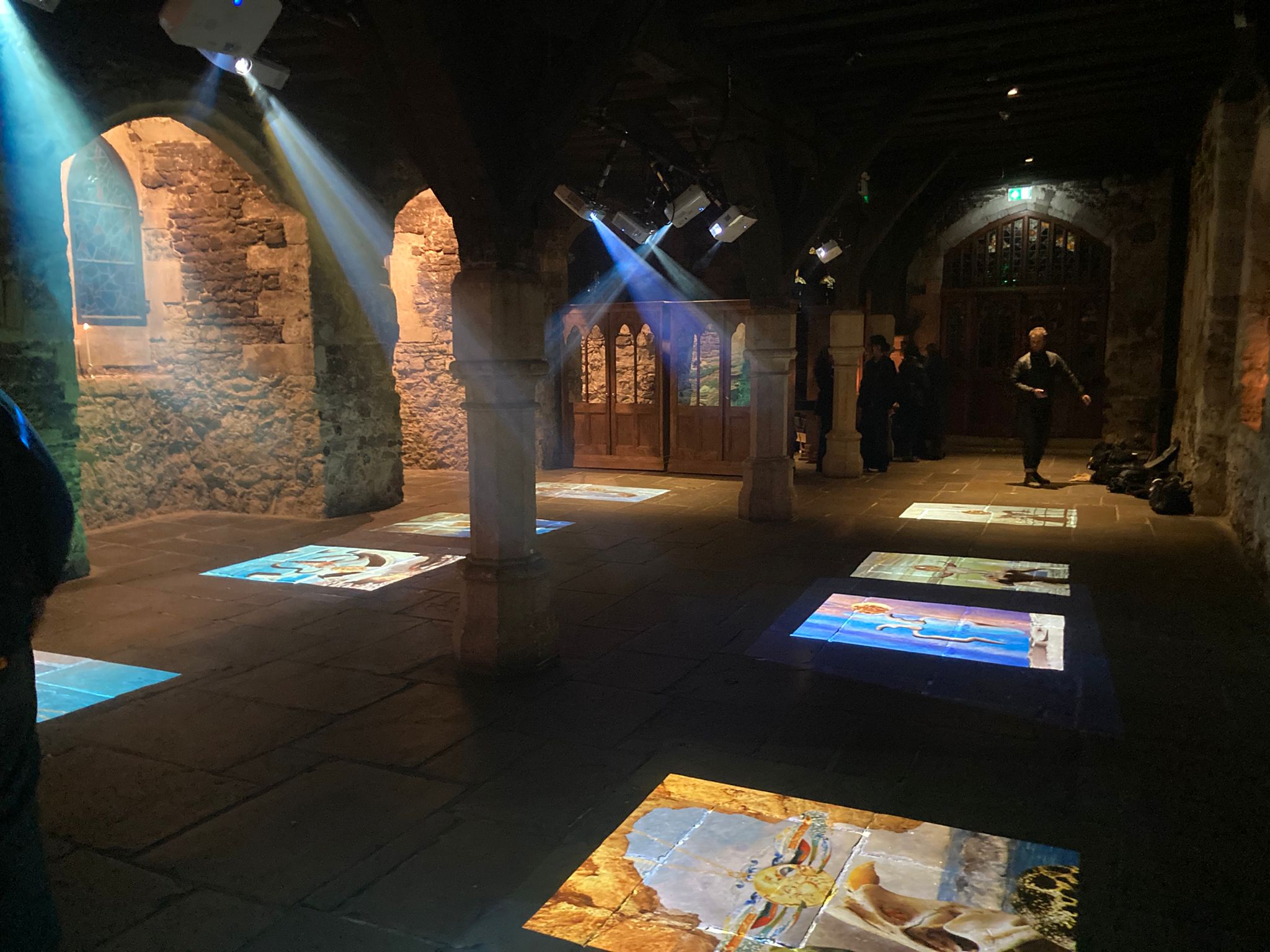

The Panasonic 8000L PT-MZ880BEJ is high spec full HD projector including standard ET-ELS20 lens. Despite its quality production, the unit is compact, lightweight and ultra-quiet, operation as low as 26 db. Picture is provided by laser LCD source, giving 8000 Lumen. A large lens shift range and ultra-short distance lens for extended installation options. This projector can run sustainably thanks to lower power consumption and washable eco-filter. Suitable for art installations, branded events and film screenings.
Product Video
Technical Specifications
| Projector type | LCD projectors |
|---|---|
| LCD panel | Panel size (mm) | 19.3 mm diagonal (16:10 aspect ratio) |
| LCD panel | Panel size (inch) | 0.76 inch diagonal (16:10 aspect ratio) |
| LCD Panel | Display Method | Transparent LCD panel (x 3, R/G/B) |
| LCD Panel | Drive Method | Active matrix |
| LCD Panel | Pixels | 2,304,000 ( Pixels 1920 x 1200) pixels x 3 |
| Light Source | Laser diodes |
| Light Output*1 *2 | 8,000 lm |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio*1 | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input) |
| Screen size (diagonal) (mm) | 1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio |
| Screen size (diagonal) (inch) | 1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % |
| Lens | Powered zoom (throw ratio 1.61–2.76:1), powered focus F = 1.7–2.3, f = 26.8–45.5 mm (for supplied lens; optional lenses also available) |
| Lens shift | Vertical(From the origin point of the lens mounter) | ±67 % (powered) (for supplied lens; optional lenses also available*4) |
| Lens shift | Horizontal(From the origin point of the lens mounter) | ±35 % (powered) (for supplied lens; optional lenses also available*4) |
| Keystone Correction Range | Vertical: ±25 °, Horizontal: ±30 ° (for supplied lens; optional lenses also available*4) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals | HDMI In | HDMI 19-pin x 3 (Compatible with HDCP 2.3, Deep Color, 4K/60p*5 signal input), CEC supported |
| Terminals | Computer In | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Monitor Out | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Serial / Multi Sync In | D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant) |
| Terminals | Multi Sync Out | D-sub 9-pin (male) x 1 for link control |
| Terminals | REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals | Remote 2 In | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | Audio In | M3 stereo mini-jack x 1 |
| Terminals | Audio Out | M3 stereo mini-jack x 1 |
| Terminals | DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color,4K/60p*5 *6 signal input) |
| Terminals | LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
| Terminals | DC Out | USB Connector (Type A) x 1 (Output 5 V/2 A) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption*7 | Maximum power consumption | 490 W (5.4–2.6 A) (510 VA) (Power consumption is 465 W at 200–240 V) |
| Power Consumption*7 | On-mode power consumption (Light power) | [NORMAL]: 435 W (100–120 V), 415 W (200–240 V) [ECO]: 315 W (100–120 V), 300 W (200–240 V) [QUIET]: 310 W (100–120 V), 295 W (200–240 V) |
| Cabinet Materials | Molded plastic |
| Filter | Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise*1 | 34 dB (NORMAL/ECO), 27 dB (QUIET) |
| Dimensions (W × H*8 × D) | 561 x 224 x 439 mm (22 3/32˝ x 8 13/16˝ x 17 9/32˝ ) (with supplied lens) |
| Weight*9 | Approx. 18.6 kg (41.0 lbs) (with supplied lens) |
| Operating Environment | Operating temperature: 0–45 °C (32–113 °F)*10 operating humidity: 20–80 % (no condensation) |
| Applicable software/application | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android™, Geometry Manager Pro*11 |
