|Source | Type:||
semiconductor diode | full-colour RGB laser projector
|Suitability:||indoor laser displays [atmospheric, abstract, text, animations]|
|System control:||FB4 [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]|
EN 60825-1 [tested by TÜV SÜD], FDA
|Size [WxHxD, mm]:||
339 x 168 x 270
|Guaranteed opt. output [mW]:||3400|
|R | G | B [mW]:||
1000 | 900 | 1500 [*see note A below]
|Wavelengths [nm, ±5nm]:||
637 | 520 | 445
|Beam size [mm]:||4.5 x 4.5|
|Beam divergence [mrad]:||
0.63 [full angle, averaged value, *see note B below]
|Modulation [kHz] | type:||100 | analogue|
ScannerMAX 506 Compact | 40 Kpps @ 8° [more Options below]
|Power requirements [V] | Input:||
100-230/50-60Hz | Neutrik powerCON TRUE1
|Max. power consumption [VA]:||340|
|Operation temperature [°C]:||10-40|
|Included in the set:||
Heavy-duty flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is available for FREE download.
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection.
|Laser safety features:||
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn’t affect the total guaranteed power output of the system.
|note B||The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam’s horizontal and vertical divergence for all rectangular beams.

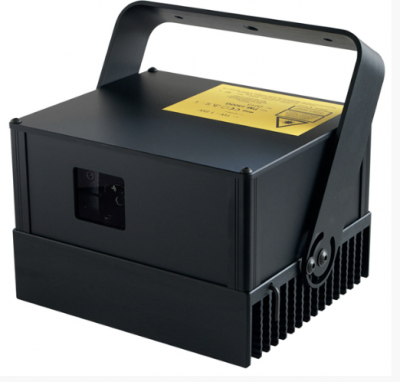

Kvant Clubmax 3400 FB4 Laser
Need to hire a laser in London? Look no further than the Kvant Clubmax FB4. The Clubmax FB4 series lasers are a radically simple solution for any event. They perform outstandingly, whether at several thousand person raves or at the smallest private clubs and cosy venues. Developed for challenging clubbing environments, the design is optimised to allow for long maintenance intervals, ensuring a long life span of the system as a whole.
