Astera PixelBrick – pack of 8£160.00
Delivery, setup, operation and de-rig all available.
Astera PixelBrick – pack of 8
Brand:
Astera
Day Rate
£160.00 +VAT
Week Rate
£320.00 +VAT
Description

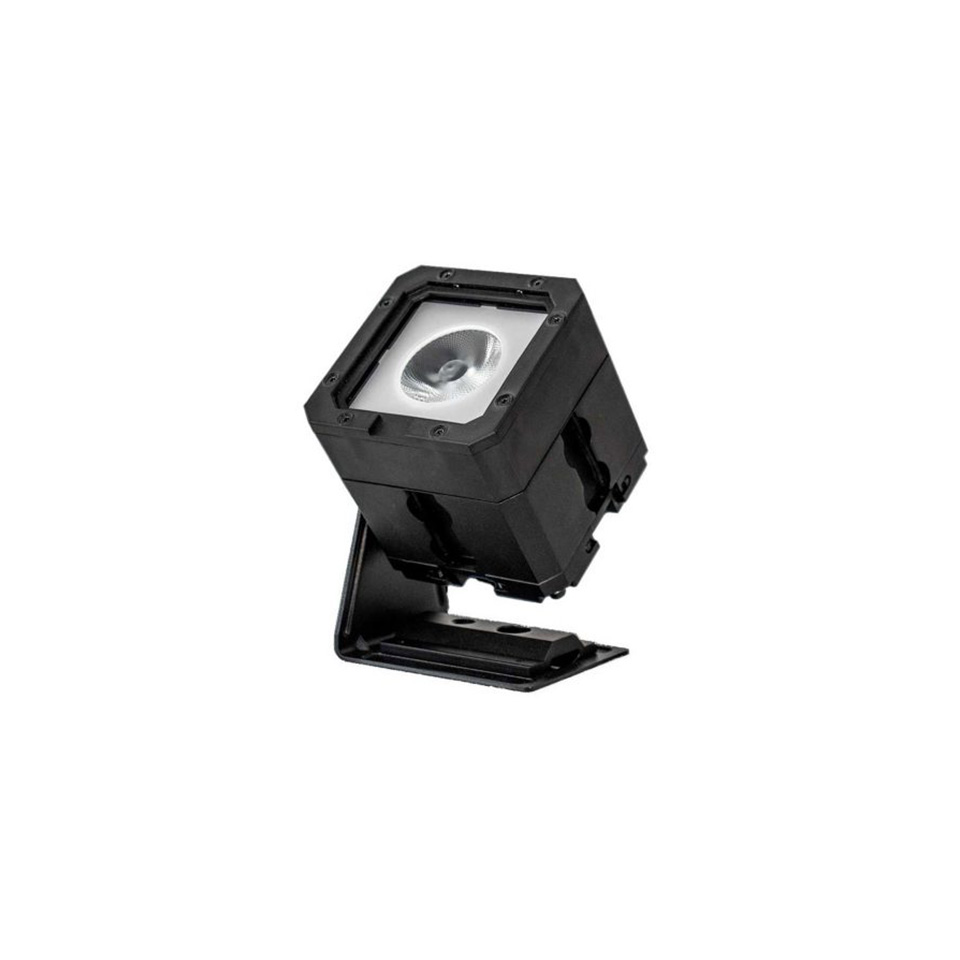

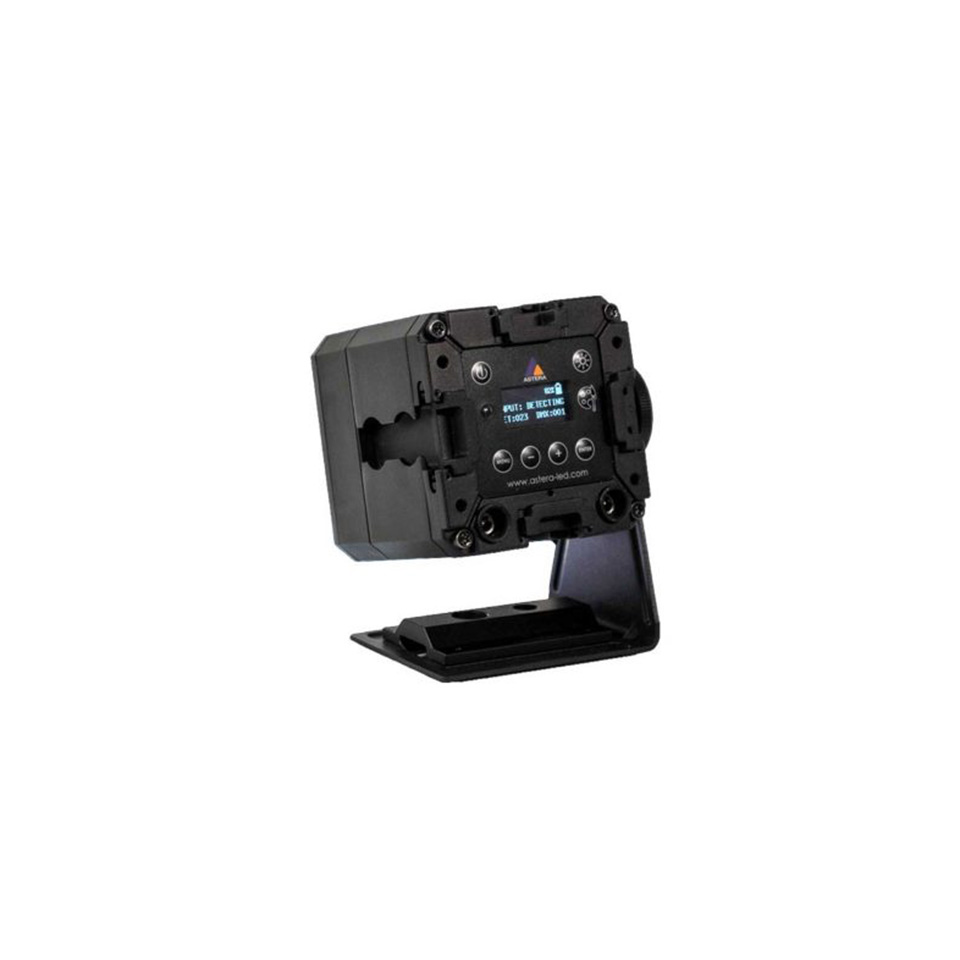

The Astera PixelBrick: a multi-purpose lighting solution. With five different beam options, it offers vast possibilities. We hire our PixelBricks out in packs of 8, complete with their charging case. What sets the PixelBrick apart is its ability to connect multiple units to form clusters and shapes, giving you full control over the lighting design. Despite its compact size, measuring just 10 cm in length and weighing just 1kg, the PixelBrick packs a punch. The high-quality light will easily meet the demands of film, TV and stage, while the flexibility to create bespoke formations will fit the needs of any private event.
Product Video
Technical Specifications
| Order Code | PB15 |
|---|---|
| LED Engine | Titan LED Engine |
| Colors | RGBMintAmber |
| Total LED Power | 15 W |
| LED Power Draw | 12 W |
| Luminous Flux 2700K | 405 Lumens |
| Luminous Flux 3200K | 475 Lumens |
| Luminous Flux 5500K | 395 Lumens |
| Light Output 2700 K @ 1m | 6 178 Lux |
| Light Output 3200 K @ 1m | 7 144 Lux |
| Light Output 5500 K @ 1m | 5 985 Lux |
| CRI (Ra)/ TLCI 3200- 6500 K | ≥96 |
| Beam Angle | 13° |
| Field Angle | 25° |
| Strobe | 0 – 25 Hertz |
| Pixels | 1 |
| Battery Runtime | up to 20 hours |
| Battery Lifetime | 70 % after 300 cycles |
| DC Input | 24 VDC – 0.8 A |
| DC Connector | 5.5 mm x 2.1 mm |
| AC Input | No |
| AC Connector | No |
| Power Consumption (max.) | 20 W |
| Wired DMX | Yes via PWB-2-86 (FP1-PWB / FP3-DTL) |
| CRMX Receiver | Built-in |
| BluetoothBridge BTB | Built-in |
| Wireless Protocols | CRMX, UHF, Bluetooth, WiFi |
| Wireless Range | CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds |
| Infrared Control | Yes |
| Housing Material | Aluminium |
| IP Rating unwired | IP65 (only with PB15-PLG) |
| IP Rating wired with PWB-CAB-0.2/-1.5/-5/-10/-15 | IP65 |
| Ambient Operating Temperature | 0 – 40 °C / 32 – 104 °F |
| Weight | 1.12 kg / 2.47 lbs |
| Dimensions (L x W x D) | 91 mm x 91 mm x 94 mm / 3.6″ x 3.6″ x 3.7″ |
| Mounting Options | 4x Airline Tracks, 4x M5 threads, BrickBracket |
