Chamsys MagicQ MQ80

Day £175 + VAT
Week £350 + VAT

Quote: £ 175 + VAT

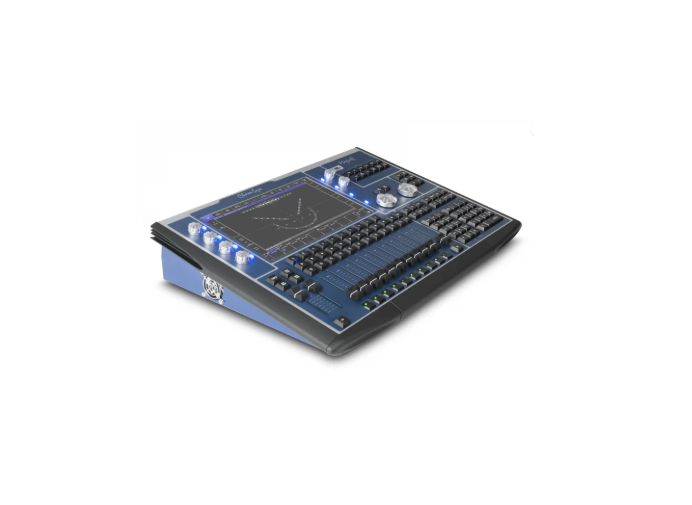

The MagicQ MQ80 is an extremely powerful console in a small size. It supports 48 universes direct from the console and 4 DMX ports supporting RDM. And it still manages to fit within checked luggage restrictions…

It has a large 12” high resolution display which provides easy access to all MagicQ features. This includes the Plot window, where you can select fixtures and focus them graphically.

MagicQ MQ80 features the same software found on all MagicQ consoles. It also uses the same show file formats, enabling compatibility between all MagicQ products. MagicQ MQ80 can be connected over network to a PC or Mac running the free ChamSys free MagicVis lighting visualisation software, or MagicHD media player software (for output of up to 8 layers of HD media) at no extra cost.

Check our pro lighting desks range for alternative specs.

£175.00

Category:



      • Universes direct from the console (via Artnet/sACN/Pathport): 48*
      • Direct DMX Outputs: 4
      • RDM Support: Yes
      • Playbacks: 10
      • Grand Master Fader: 1
      • Sub Master Fader: 1
      • Crossfade Master Fader: 1
      • Attribute Encoders: 8
      • Network Ports: 4
      • Inbuilt 12” Display: 1
      • External Monitor up to 1920×1200 Resolution – HDMI: 1
      • USB Ports: 6
      • Audio Input (1 channel, 7 band): Yes
      • MIDI Ports (In and Out: Yes
      • Remote input port: Yes
      • LTC Timecode In Port: 1
      • Remote Input Port: 1
      • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
      • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

  Software Specifications:

      • Max Number of DMX Channels: 24576
      • Max Number of Fixtures Supported: 24576
      • Max Number of Cues: 5000
      • Max Number of Cue Stacks: 2000
      • Max Number of Groups: 5000
      • Max Number of Palettes: 4096
      • Number of Media Server Layers Supported: 50 (each different content)
      • Numbers of Shows: Virtually unlimited

 Included Accessories:

      • Dual Colour Desk light: 1
      • Dust cover: 1
      • Neutrik powerCON TRUE1 Power Cable: 1

 Boxed Weights and Dimensions:

      • Width: 750mm (29.5 inches)
      • Depth: 350mm (13.7 inches)
      • Height: 600mm (23.6 inches)
      • Weight: 10kg (22 lb)

 Flight Cased Weights and Dimensions:

      • Width: 750mm (29.5 inches)
      • Depth: 350mm (13.7 inches)
      • Height: 600mm (23.6 inches)
      • Weight (console in flightcase): 20kg (44 lb)

 Console Weights and Dimensions:

      • Width: 570mm (22.5 inches)
      • Depth: 405mm (15.9 inches)
      • Height: 110mm (4.3 inches)
      • Weight: 8kg (17.6 lb)
