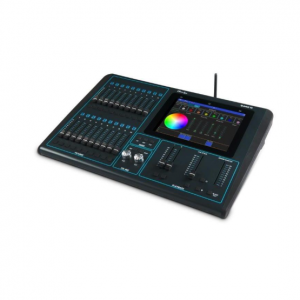

Chamsys QuickQ 10

Day £55 + VAT
Week £110 + VAT

Quote: £ 55 + VAT

QuickQ consoles from ChamSys are designed with a quick and easy user interface, 9.7” touch screen, and a comprehensive feature-set that bring simplicity and power to the small console market. Built-in Wi-Fi allows for remote control from a tablet or phone, which can also serve as a 2nd external monitor. These consoles are ideal for students, volunteers, or part-time operators, and comfortable to use even by professionals on small-scale shows. QuickQ 10 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10 is the perfect choice console for control of dimmer and LED colour mixing fixtures.

£55.00

Overview

      • Modelled on smartphone icon interfaces for ease of use
      • Intuitive interface allowing simple control of all fixture attributes
      • The interface supports gestures such pinch zoom and scrolling
      • Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi
      • 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
      • 3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
      • The console features a dedicated Grand Master fader for overall level control
      • A dedicated “colour control area” with Hue and Saturation encoders
      • Select from inbuilt palettes and gel libraries using the touch screen
      • Built in colour picker for use with LED fixture
      • QuickQ supports output of DMX over network via ArtNet/sACN/Pathport

Specifications:

      • Universes supported: 1
      • Direct DMX Outputs 5-Pin XLR: 1
      • Master Playback Faders: 2 Chase, 1 Cue Stack
      • Multi-Function Fixture Faders: 20
      • Bump Buttons: Yes
      • Attribute Encoders: 0
      • Dedicated Hue/Saturation Encoders: Yes
      • Inbuilt 9.7” Multi-touch Display: Yes
      • External Monitor: 1920 x 1080 HDMI
      • Inbuilt Wi-Fi: Yes
      • Network Port: 1
      • USB Ports: 2
      • Audio Input: 1
      • Audio Output: 1*
      • MIDI Ports in/out: No

Software Specifications:

      • Max Number of DMX Channels: 512
      • Max Number of Fixtures Supported: 512
      • Max Number of Cue Stacks: 1
      • Max Number of Chases: 2
      • Midi & Midi Timecode Supported: No
      • OSC Supported: No
      • RDM Autopatch for fast show patching
      • Fixture library of over 30,000 fixture files
      • Built in FX generator
      • Colour picker and Gel inbuilt Gel library
      • Offline designer software available for Windows and Mac

Console Weights and Dimensions:

      • Width: 525mm (20.7 inches)
      • Depth: 350mm (13.8 inches)
      • Height: 106mm (4.2 inches)
      • Weight: 4.07kg (8.97 lb)

Included Accessories:

      • USB Desk light: 1
      • Dust cover: 1
      • Tablet stand: 1
      • Wi-Fi Antenna: 1
      • 12V power supply: 1
      • IEC power cable: 1

Boxed Weights and Dimensions:

      • Width: 680mm (26.8 inches)
      • Depth: 420mm (16.5 inches)
      • Height: 230mm (9 inches)
      • Weight: 8kg (17.63 lb)

Flight Cased Weights and Dimensions:

      • Width: 650mm (25.6 inches)
      • Depth: 490mm (19.3 inches)
      • Height: 210mm (8.3 inches)
      • Weight (console in flightcase): 16kg (35.27 lb)

QuickQ-v8-Stable-Manual-1.pdfQuickQ-Brochure-2021-spreads-1.pdfQuickQ-10-Spec.pdf
